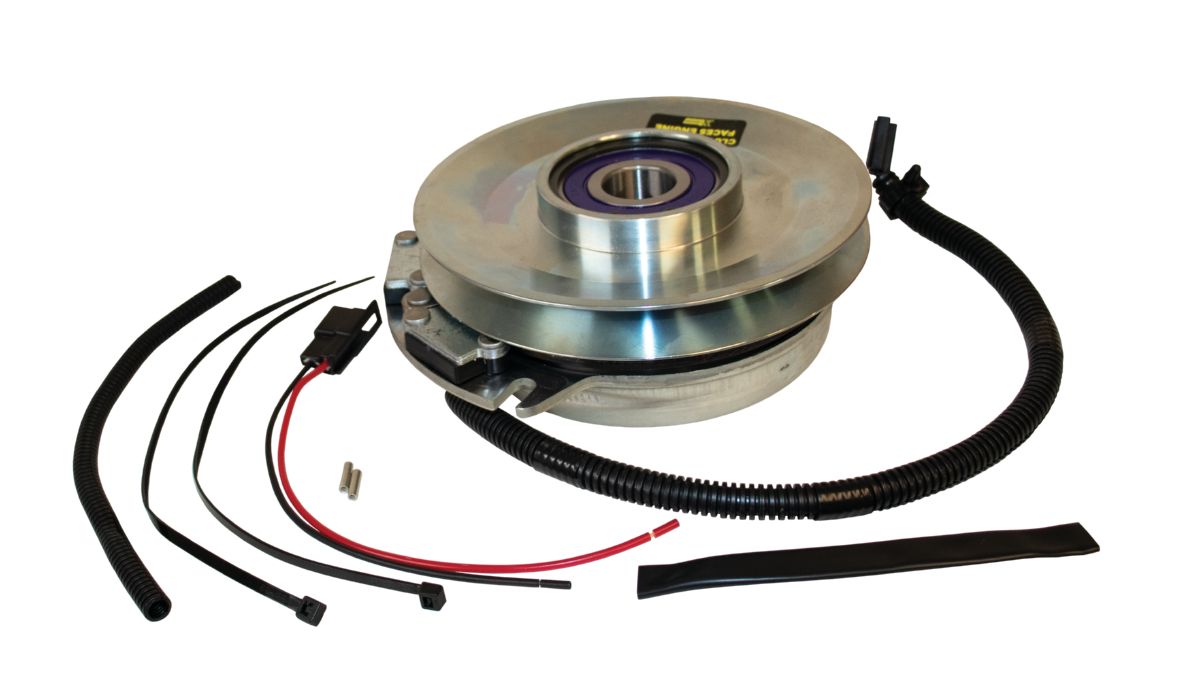

Toro 274-2383 - Electric PTO Clutch
Item # 274-2383
Standard Pack: 1
Price: $390.93 ea
In Stock
Cool coil technology. Does not fit all applications - verify part number by referring to model specifications. Heavy Duty "FatBoy Series" upgrade. Replaceable pulley bearing. Super smooth "Xtreme Precision" machined pulley. To prevent premature clutch failure, follow the instruction sheet included with the clutch. Upgraded to 3 layer "Xtreme TOUGH" integrated, water tight, impact resistant wire harness.
Fits Toro Z Master Z500, Serial No. 260000001-270999999 & Z528, Serial No. 270000001-270999999 & Z Master Z550, Serial No. 280000001-280999999.
Replaces Exmark #(s) 109-7669, 116-1612; Lawn-Boy #(s) 116-1612; Toro #(s) 109-7669, 110-0449, 116-1612; Warner #(s) 5218-141, 5218-167, 5218-208, 5218-270, 5218-326.
Fits Toro Z Master Z500, Serial No. 260000001-270999999 & Z528, Serial No. 270000001-270999999 & Z Master Z550, Serial No. 280000001-280999999.
Replaces Exmark #(s) 109-7669, 116-1612; Lawn-Boy #(s) 116-1612; Toro #(s) 109-7669, 110-0449, 116-1612; Warner #(s) 5218-141, 5218-167, 5218-208, 5218-270, 5218-326.
•ID: 1-1/8"
•Pulley Diameter: 7-5/32"
•Belt Width: 1/2" or 5/8"
•Direction: Clockwise
•Torque: 205 ft. lbs
•Pulley Diameter: 7-5/32"
•Belt Width: 1/2" or 5/8"
•Direction: Clockwise
•Torque: 205 ft. lbs
